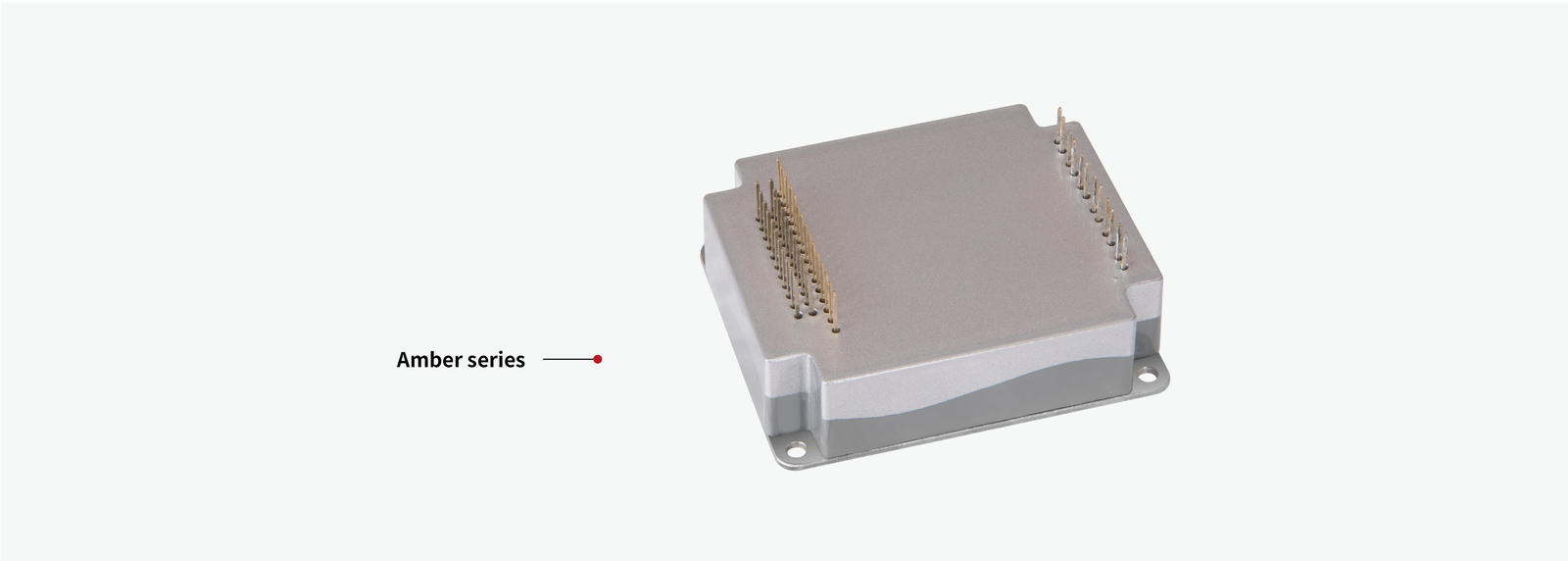

AMBER series servo drivers

Power range of Amber series low-voltage DC servo is 0-400W; supports CANopen, single-ended pulse and analog control; supports 6 digital inputs, 2 digital outputs, and 1 analog input; supports incremental encoder, Hall encoder.
It also supports rotary servo motors, DD motors (torque motors), frameless motors, voice coil motors, linear motors, brushless motors, brushed motors, and coreless motors.Stepper motors, reduction motors, etc.

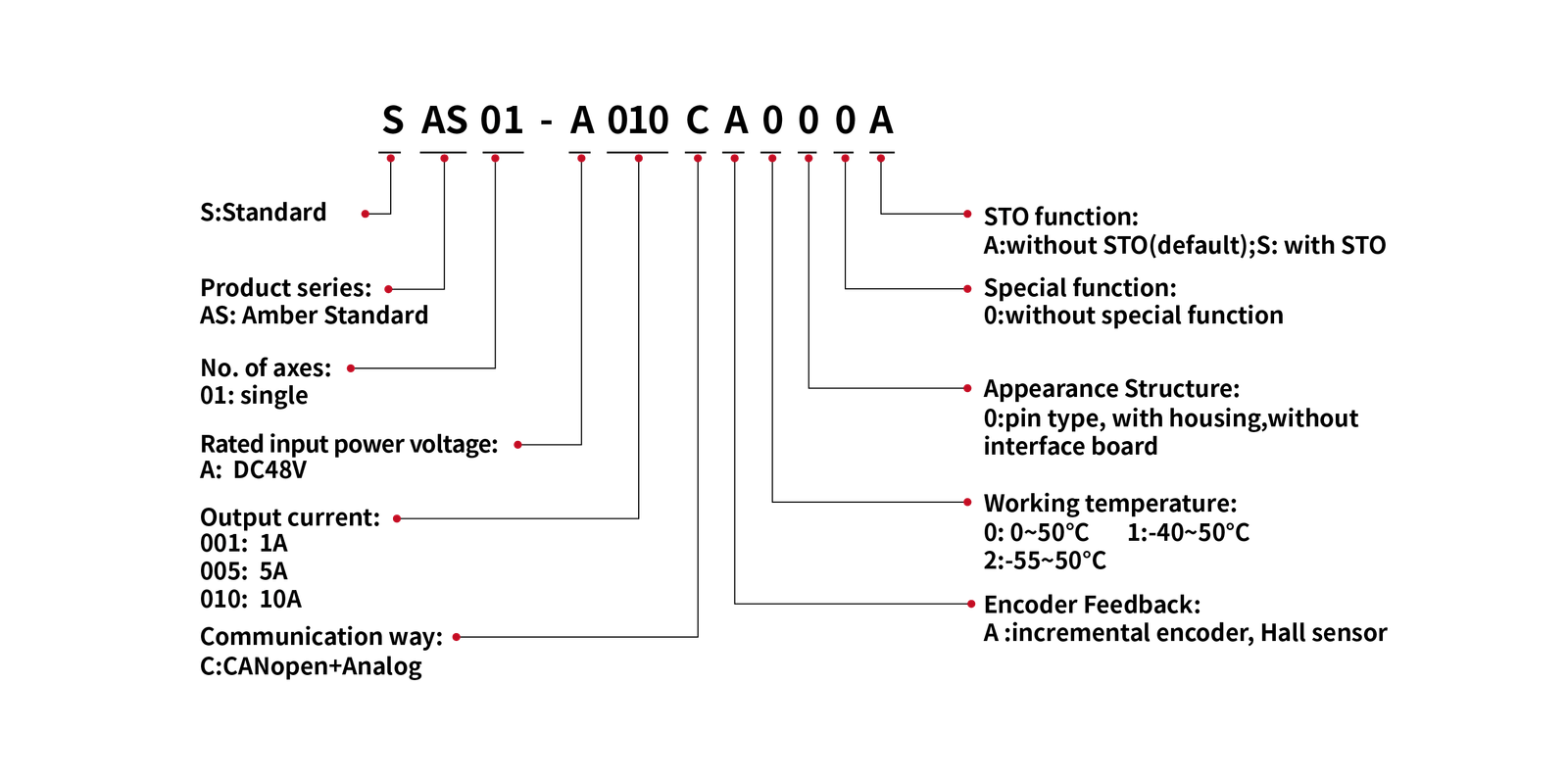

Product Model		SAS01-A001	SAS01-A005	SAS01-A010
output power	Rated power (W )	50	200	400
	Continuous current(A)	1	5	10
	Instantaneous peak current(A )	2.5	12.5	25
	Instantaneous peak current duration(s)	3
Input Voltage	Rated Input Voltage(VDC)	12-60
	Maximum Input Voltage(VDC)	72
Control method	Bus	CANopen
	Pulse input	Pulse+direction for position control,PWM for speed/current control(1 channel, single-ended)
	Debugging	USB
Motor Feedback	incremental encoder, Hall sensor
Digital I/O	Input	isolated 6 channels
	output	isolated 2 channels
Pulse input	5V single-ended
Analog	Input	-10V~+10V 2-way 12-bit resolution
Status Display	Dual-color LED:Red、Green
Motor control	Three-loop control of position, speed and current, current loop 50 us , position/speed loop 200 us
Failure protection	Short circuit, overcurrent, overtemperature, overvoltage, undervoltage, overspeed, encoder communication error, etc.
sise	55mm47mm18mm
Weight	67g
